Mini Quick Course

Locating Street Lighting

Connect at the lighting first and, on a tee'd off system, the signal runs the LV main and the services with it. Do the houses one at a time and you can spend twenty minutes getting what one connection would have handed you.

Read · ~1 minstep 1 / 7

Why we start here

Street lighting does not come first because lighting matters most. It comes first because it is the fastest way in.

Picture an ordinary street: an LV main running down it, three house services coming off, and lighting cables. All of it has to be found. You could hook the Genny onto each property in turn and apply a signal down to each one, and that could take you twenty minutes.

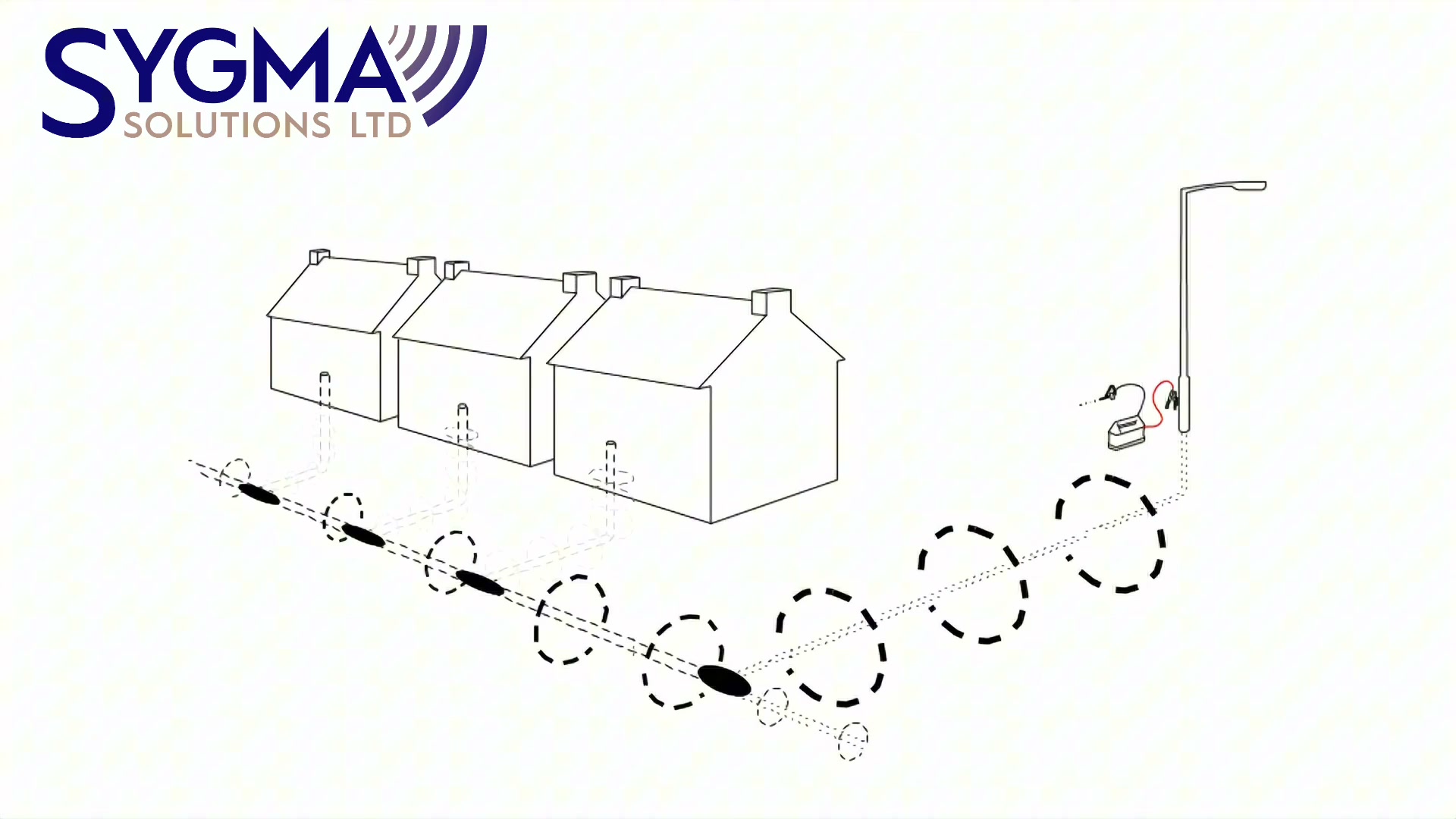

Street diagram: houses, LV main, and the lighting column with the Genny connected
One connection at the column and the signal is out on the LV main, reaching for the house services.

Then you connect to the lighting column, and if it is a tee'd off system the signal runs the main, comes back up, and picks up the house services as well. You have just spent twenty minutes getting what one connection would have given you.

It is a habit worth building: work a methodical process, and start at the column.

Webinar: Getting the Best Out of Your Genny and CAT, from 3:47
